Accessories

Archigas GmbH offers accessories designed for the correct connection and operation of gas analysers.
Contact Us
Schaltnetzteil PHOENIX 10884951Schaltnetzteil PHOENIX 1088495Schaltnetzteil PHOENIX 1088495

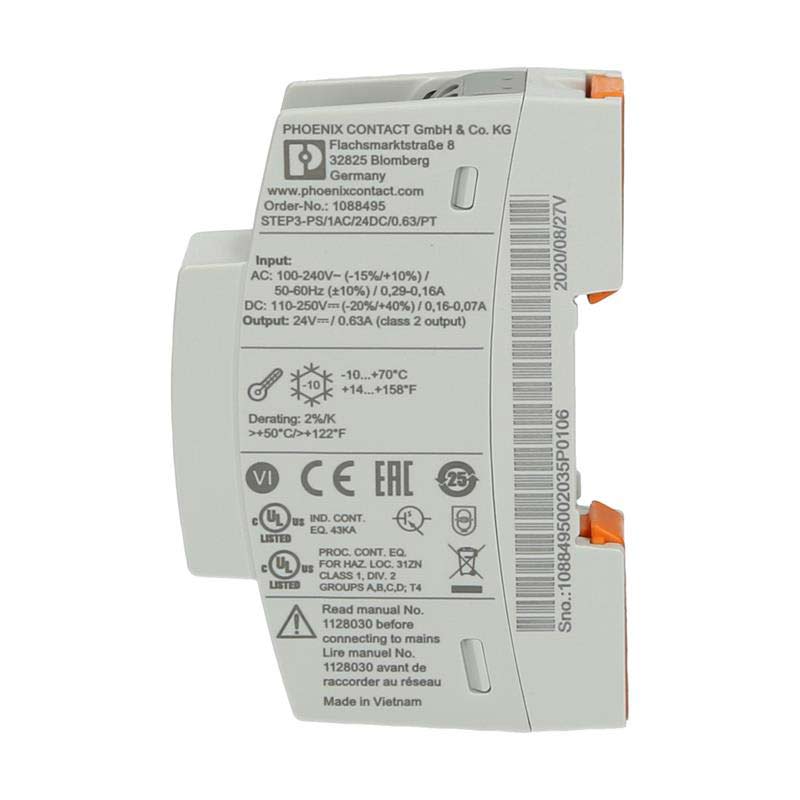

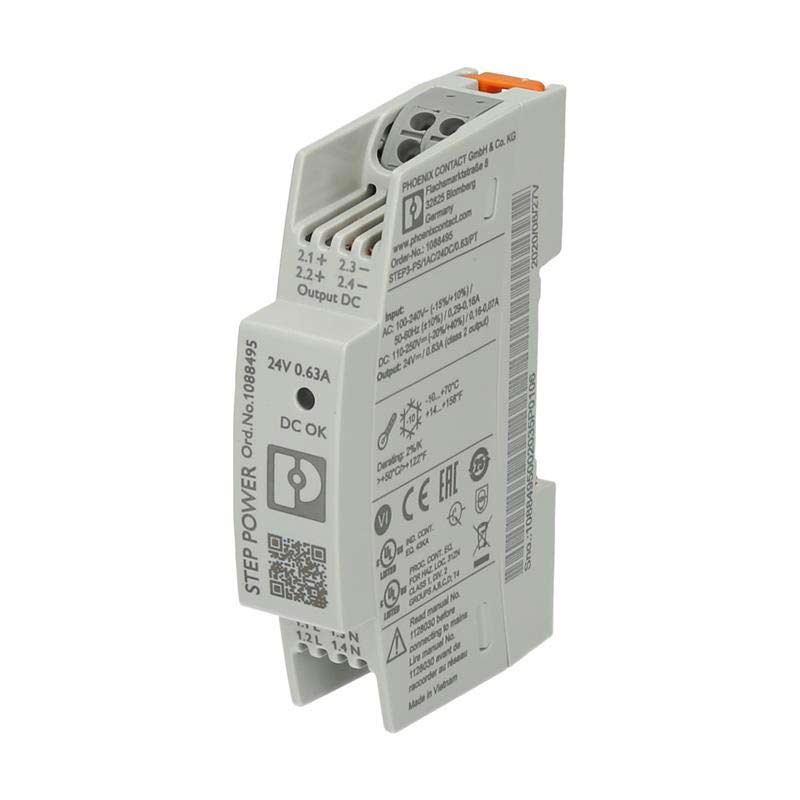

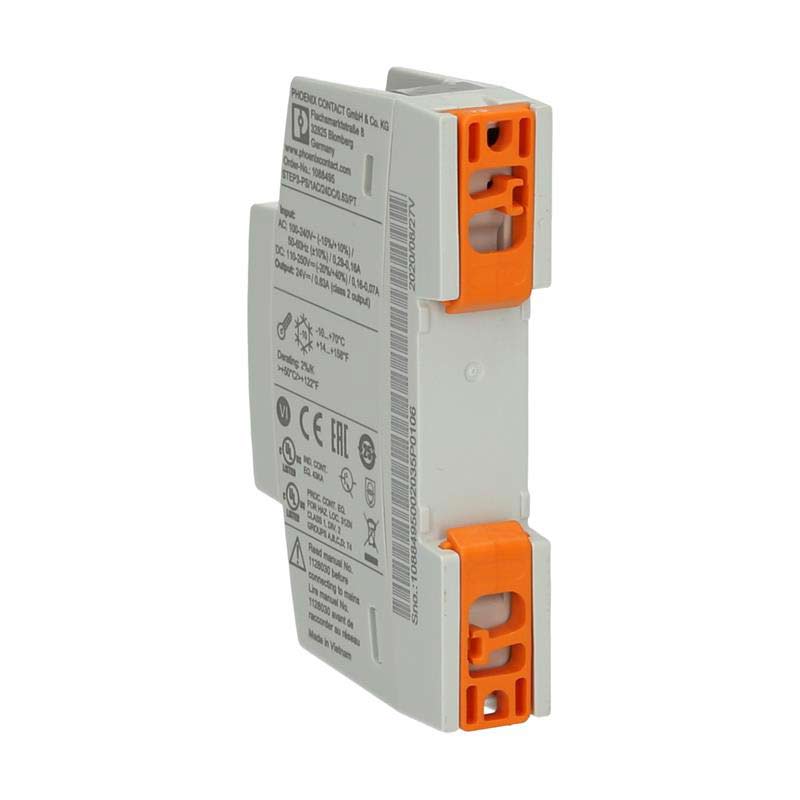

Switch-mode power supply PHOENIX 1088495 – STEP3-PS/1AC/24DC/0.63/PT

  • Primary switched-mode power supply STEP POWER
  • Nominal output voltage: 24 V DC
  • Rated output current: 0.63 A/15 Watt
  • Nominal input voltage range: 100…240 V AC (1-phase)
  • Efficiency: > 86 % (120 V AC)/> 87 % (230 V AC)
  • Top hat rail mounting
  • Push-in connection technology
  • Protection class: IP20
USB to RS485 bidirectional converterUSB to RS485 bidirectional converter

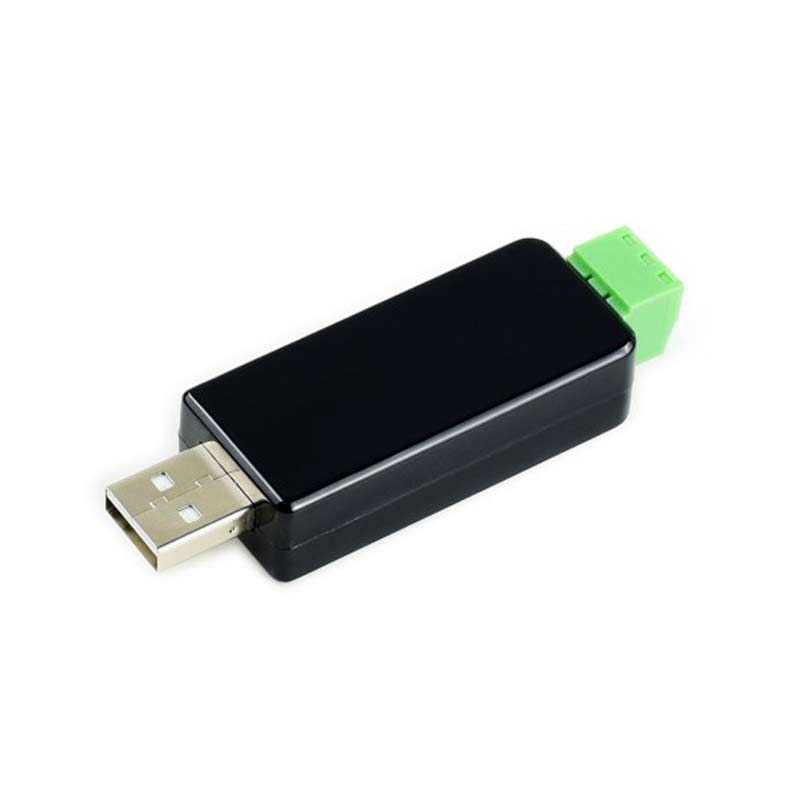

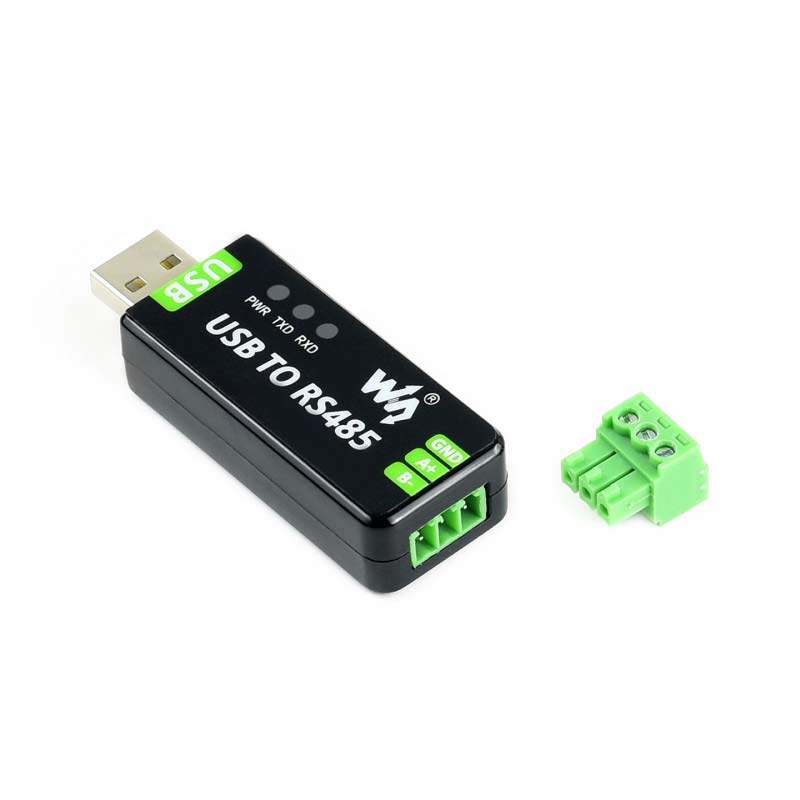

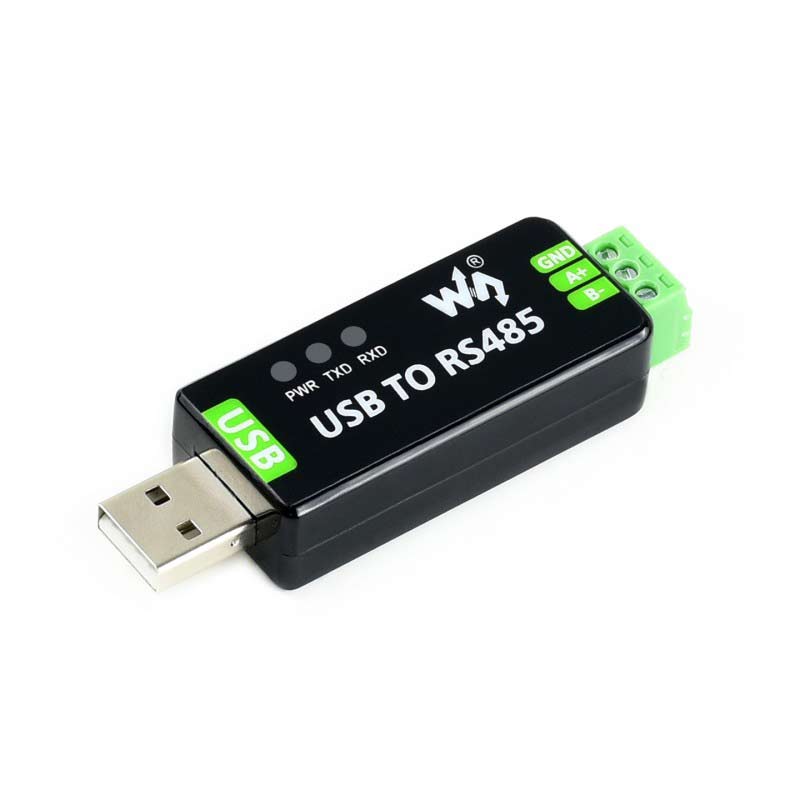

Industrial USB to RS485 bidirectional converter

  • Support of USB to RS485 bidirectional conversion
  • Onboard original FT232RNL and SP485EEN chip
  • Fast communication, stable and reliable, better compatibility
  • Onboard TVS (Transient Voltage Suppressor), effectively suppresses overvoltage and transient voltage spikes in the circuit, lightning-proof and anti-static
  • Onboard resettable fuse and protection diodes, ensures stable current/voltage outputs, provides overcurrent/overvoltage protection, improves shock resistance
  • 3 LEDs to indicate power and transceiver status
